Smart zebra Crossing Best science Project / servo motor arduino project.

-

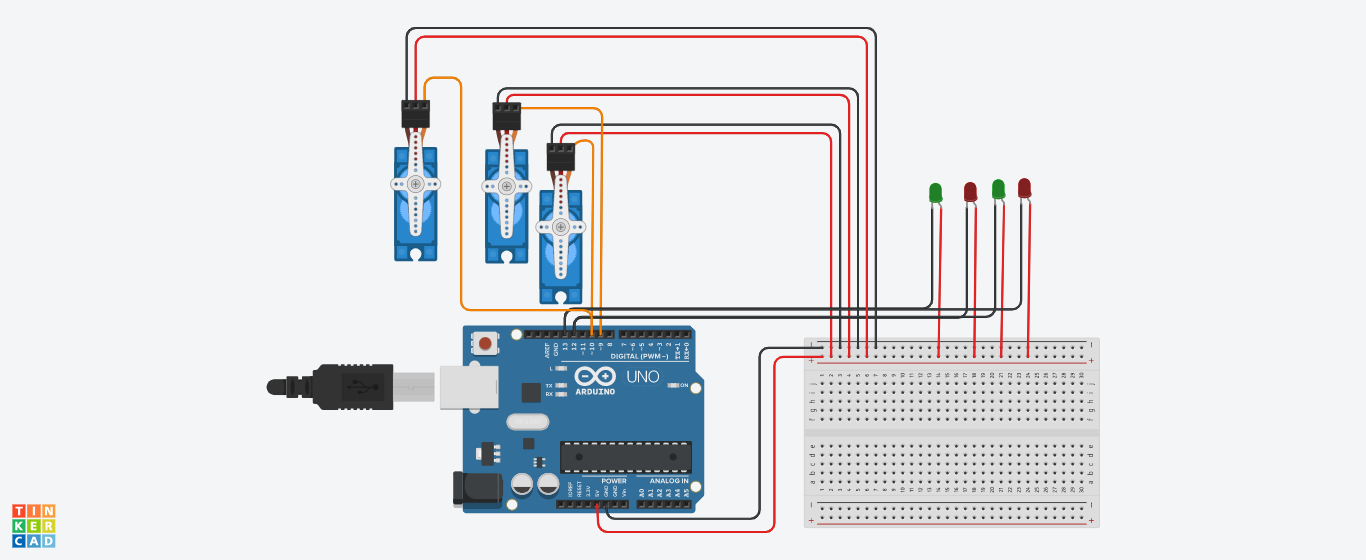

...............Diagram.............


                                        ....................... Arduino Code.............................


#include <Servo.h> //import library




Servo myservo;

int led = 13;



Servo myservo1;

int led1 = 12;









void setup()

{



  pinMode(led, OUTPUT);

   myservo.attach(9, 500, 2500);

  pinMode(led1, OUTPUT);

  myservo1.attach(10, 500, 2500);

}



void loop()

{



    // Rotate Servo 3 by 180 degree


  myservo.write(90);

  myservo1.write(0);

  delay(10);


 digitalWrite(led, HIGH);

  delay(8000);

  digitalWrite(led, LOW);



  myservo.write(0);

  myservo1.write(0);

  delay(1000);


  myservo.write(0);

  myservo1.write(90);

  delay(10);


   digitalWrite(led1, HIGH);

  delay(8000);

  digitalWrite(led1, LOW);


  myservo.write(0);

  myservo1.write(0);

  delay(1000);











  //



}
